Eliminate the risk of contamination in conveyor belts with chains

Changed the specification from a conveyor belt attachment type with chain (tying it to a pipe with wire) to a stand pin type. The risk of contamination of wires has been eliminated.

Customer Issue

I want to eliminate the risk of contamination.

A conveyor belt with a chain is used for transportation by a certain food manufacturer.

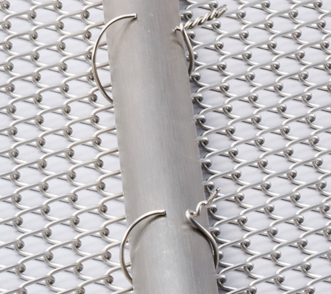

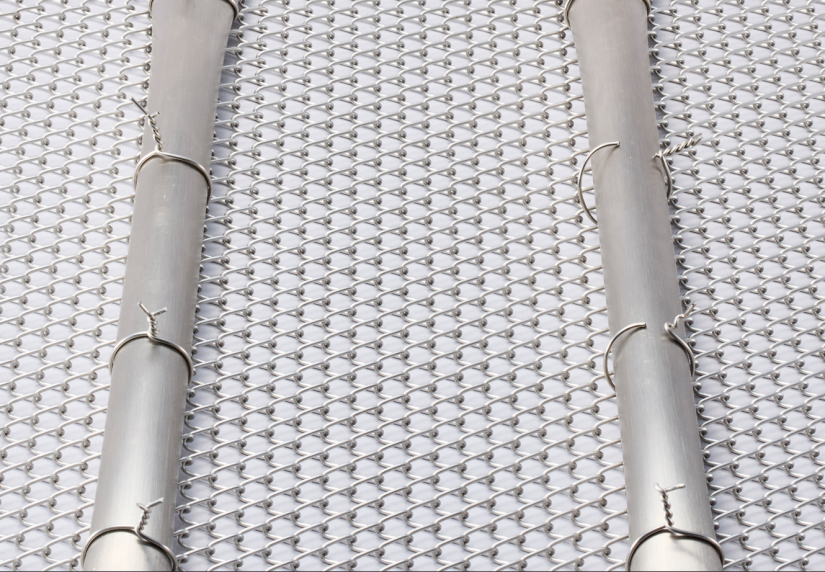

It was designed to put a net on the pipe stee and tie it with a wire, but there was a risk of foreign matter contamination due to wire breakage.

Our proposal

Changed specifications to stee pin type

Hearing the usage conditions and performing strength calculations.
We propose a change to a stable type that does not need to be tied with wires without changing the net mesh.
　

Effect after introduction

The risk of contamination was eliminated, leading to cost reduction.

Eliminate the risk of breakage due to the need for wire binding.
In addition, the simple structure of the belt has led to cost reduction.

Case Studies List

Products used this time

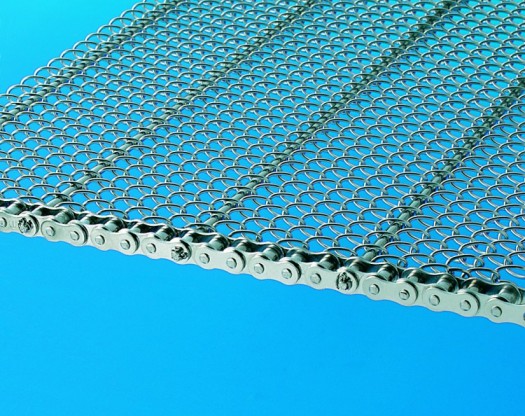

CHAIN DRIVEN CONVEYOR BELT
