WOVEN WIRE MESH(FOR SIEVING APPLICATIONS)
We can offer a wide range of specification for various applications
see the details -
PRE CRIMPED SCREEN
It is made with wires that have been crimped prior to the final weaving process.
・Thick wires can be used for aperture.
・Stable opening
・High opening ratiosee the details -
FLAT TOP SCREEN
One side of the mesh has flat surface ,which provides smooth flow of powder.
see the details -
TON-CAP® SCREEN
The rectangular aperture can reduce clogging and increase processing capacity.
see the details -
TY-ROD® SCREEN
Two-point contact and a high opening ratio solve clogging problems. It is suitable for sieving adhesive particles with high water and clay content.
see the details -
WEDGE MESH SCREEN
The unique shape of wedge wires enables excellent solid-liquid separation
see the details -
WEDGE WIRE SCREEN
It is hard to get clogged even with a small slot. Useful for various applications.
see the details -
PERFORATED SCREEN
Perforated screen has stable opening and enough strength because it' made of metal sheet.
It can be punched on materials such as iron plates, high tension steel plates, stainless steel plates, etc. in the shape of round holes, square holes, and long holes.
Processing such as with tension hooks and cylindrical shape is also possible.
It is used in a wide range of applications, including vibration sieves, filters that filter liquids such as water, and rectifications that control the flow of gas.see the details -

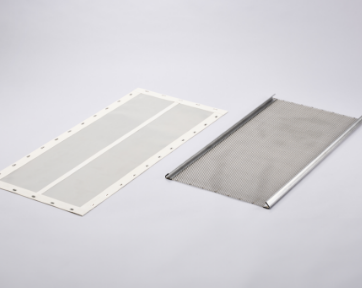

TENSION HOOK
By attaching tension hooks to the wire mesh, it is possible to use it for vibration sieve machines such as square shifters.
see the details -
PLASTIC MESH
Various types of resin mesh (Plastic mesh) are available.
see the details -

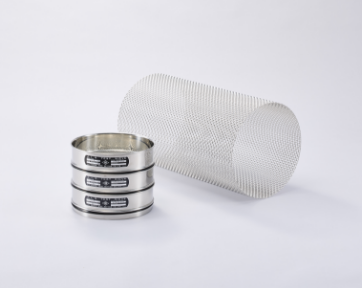

TEST SIEVES
"Test Sieve" is used for particle size distribution measurement and the accuracy of aperture size is very important. Under stringent quality control, we meticulously choose materials and weave wire mesh using high-precision, specialized weaving looms.
All finished wire meshes undergo a comprehensive inspection following the JIS Z8801-1 (Test sieves - Metal wire sieves) standards. Only those that meet the required standards are approved for shipment. The inspection data can be provided as our internal inspection report. Additionally, Inspection certificate by JQA (Japan Quality Assurance Organization,nominated by the Ministry of Economy, Tradeby ) can also be provided.
see the details -
Magnetic wire mesh (KMG mesh®)
KMG Mesh® is attached to a magnet because it has magnetic properties.
By using it for various applications such as sieves and filters, even if the wire mesh breaks down, the fragments can be recovered with a magnet and prevent contamination of foreign substances.
In order to further extend the life of KMG mesh® developed for the purpose of preventing foreign substances from contamination, we have developed a higher strength-strength steel type "Durmalloy" in addition to the traditional KNM21.see the details -
DDK2
Spirals of left wound and right wound are alternatively assembled and connected by crimped rod. It is driven by special sprocket.
The dedicated sprocket is designed by specification of belts.see the details -
DDS・DDFR・DDSB
Sprocket teeth are enaged with belt apertures to turn the belt directly for steady drive. The materials are UHWWPE and casting stainless steel.
see the details -

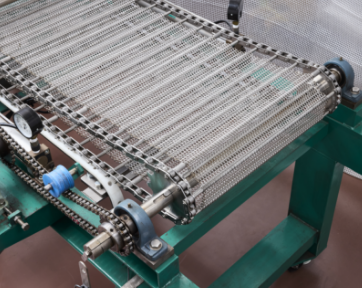

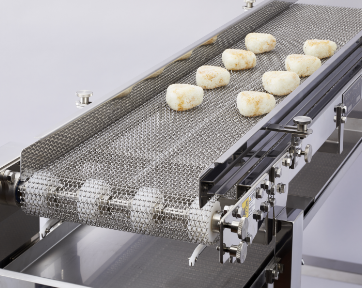

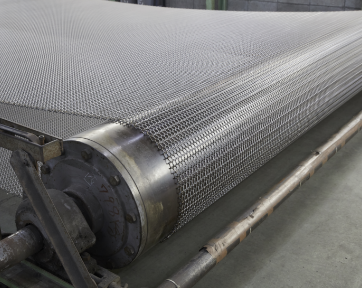

Direct Drive Belt and System DIRECT DRIVE BELT SYSTEM
Transfer conveyor using a direct drive belt. It is available to use for conveying and transfer lines of small products.
see the details -
K2
Spirals of left wound and right wound are alternatively assembled and connected by crimped rod.
see the details -
F2・A2
Spirals of left wound and right wound are alternatively assembled and connected by straight rod. A2 with rod pitch less than twice spiral pitch. F2 with rod pitch more than twice.
see the details -
K2W・A2W
K2W is double spirals type of K2 and A2W is that of A2.
see the details -
A4・A3
The structure consists of spirals of left wound and right wound assembled closley each other and connected by straight rod. A4 is a type in which one spiral is connected by four rods. A3 is a type in which one spiral is connected by three rods.
see the details -
S
Spiral type with one winding direction.
see the details
