Technical Information
Variation of Wire Mesh Mist Eliminator
There are various shapes of Wire Mesh Mist Eliminator due to required size of mist eliminator and installation space.

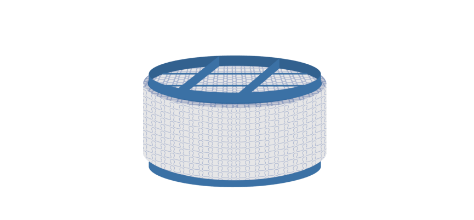

Round shape of Wire Mesh Mist Eliminator

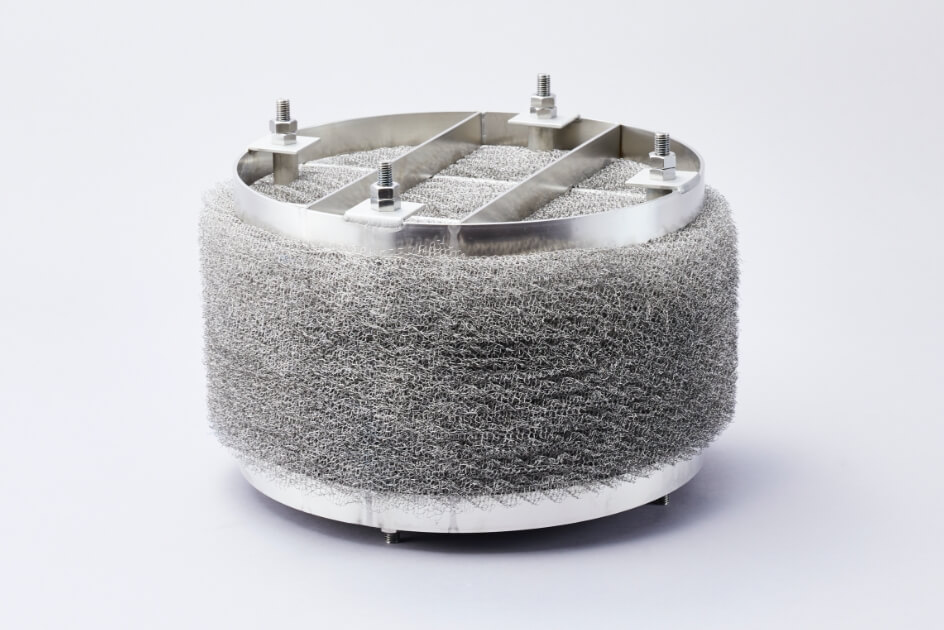

Round shape of Wire Mesh Mist Eliminator is often installed in round vessel and the standard is with grids as shown in the photo. It is common to install by fixing to mounting seat in vessel with bolts and nuts.
Please refer to the catalog for the installation method.

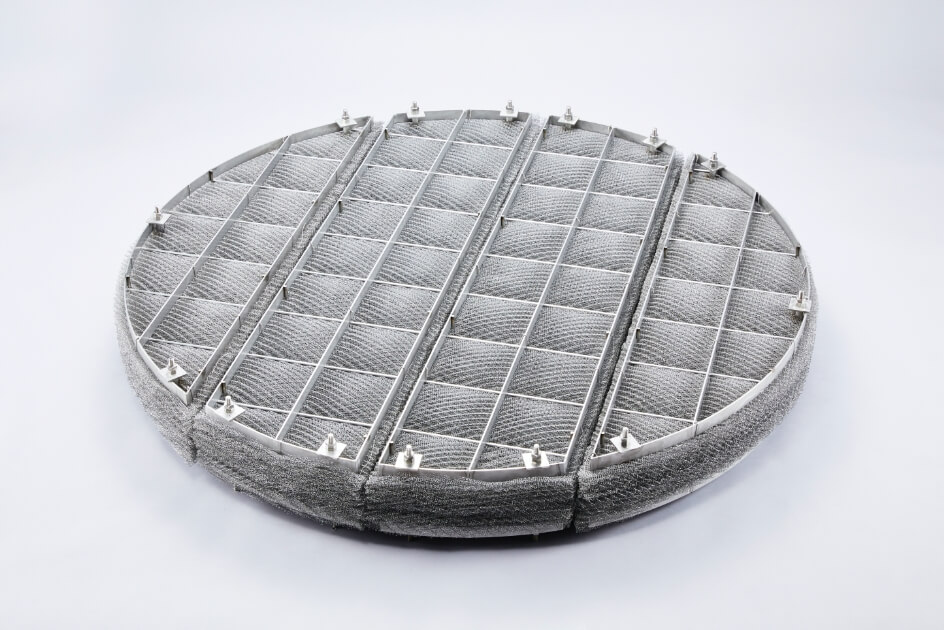

In case of large size, Wire Mesh Mist Eliminator is devided into sections and combined in vessel.

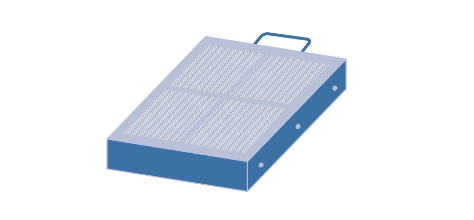

Square shape of Wire Mesh Mist Eliminator

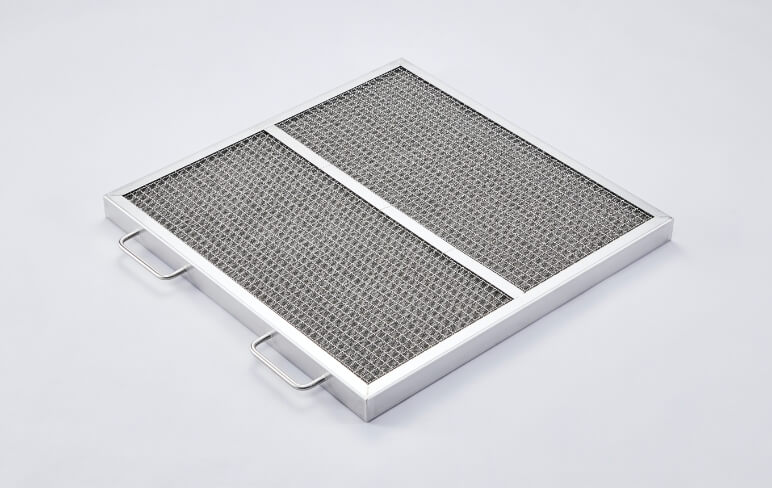

Square shape of Wire Mesh Mist Eliminator is often insatlled in a special square vessel and the standard is with frame covering four sides as shown in the photo. It is common to set up guide inside vessel so that Wire Mesh Mist Eliminator can be inserted according to the guide.

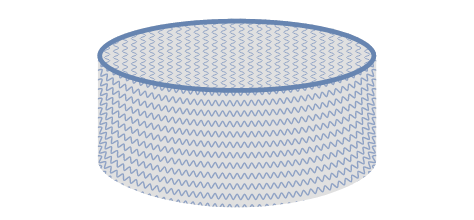

Others

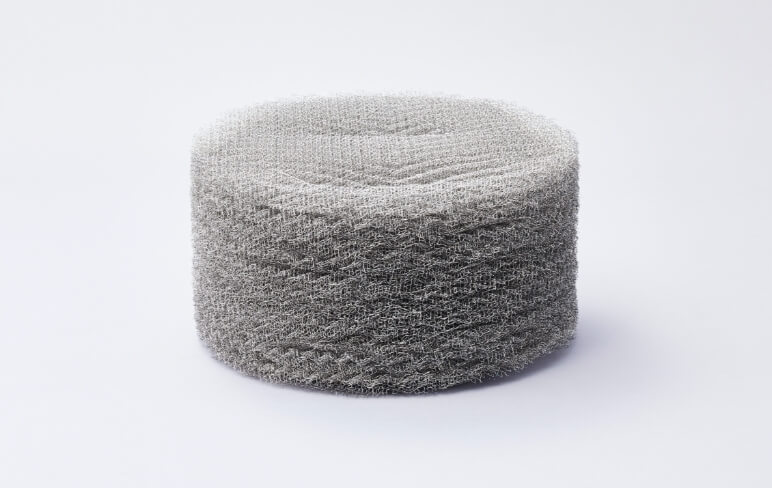

It may be used only with knitted wire mesh fabric. For example, if the required area is small, only knitted wire mesh fabric may be insrted into pipe in production line. In this case, it is necessary to attach bars to support mist eliminator in pipe and also drain nozzle. In addition, it may be used in various shapes such as donuts and cylindrical shapes.
