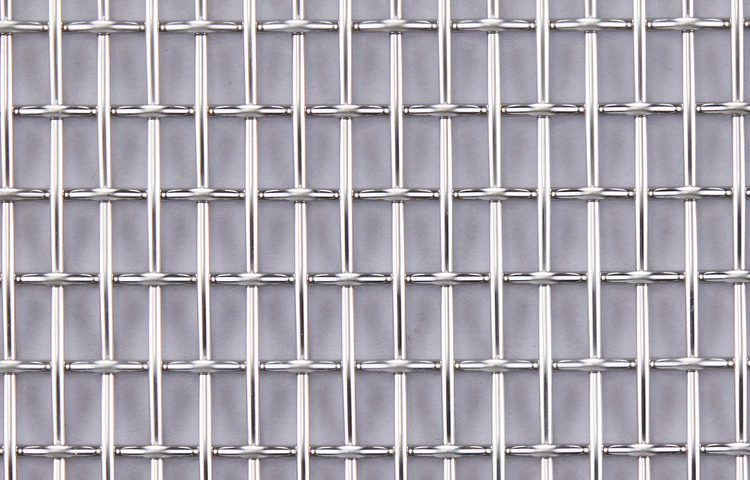

Ton cap with flat line φ1.0/(1.5×3) □X (1.2 x 7)mm eyes

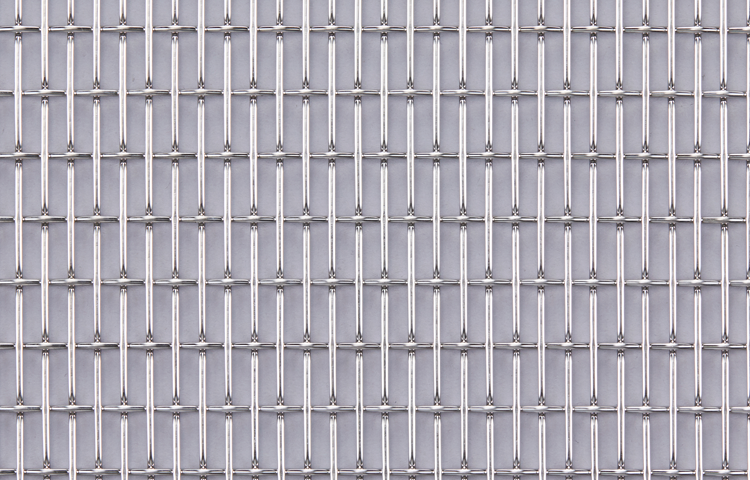

Round line toncap φ2 × (5 × 10) mm eyes

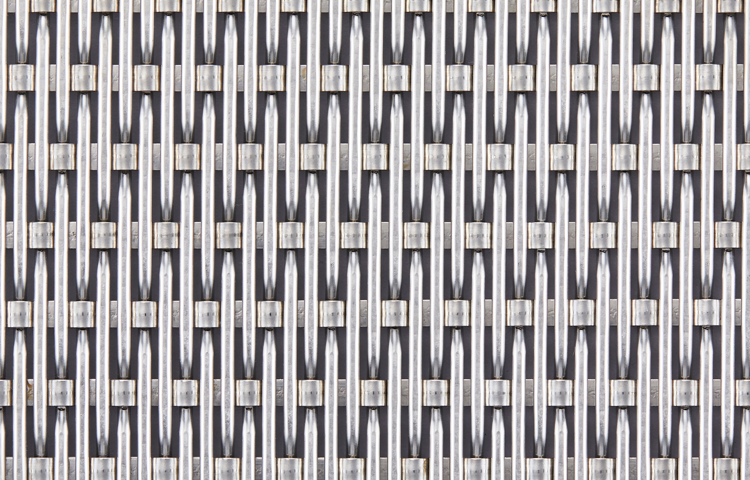

Semiflat top ton cap φ2 × (5 × 15) mm eyes
Twilledton cap φ3.5/(2×7) □X (1.8 x 13) mm eye
TON-CAP® SCREEN
- Sieving Screen( metal wire mesh )
- Food
- Chemical
- Beverage
- Automotive
- Electronic Parts
- Pharmaceutical
- Civil Engineering
- Steel
- Building Material
- Machine
- Mining
- Sieving
The rectangular aperture can reduce clogging and increase processing capacity.
If you want a catalog PDF, click here.Characteristics
・In cases where the wire diameter and aperture are the same, it achieves a higher opening ratio compared to plain weave mesh.
・It offers increased durability by allowing the use of thicker wire diameter compared to plain weave mesh.
・For spherical particles, the reduced clogging is attributed to the two-point contacts with the wires.
・Flat top type is also available.
Products
-

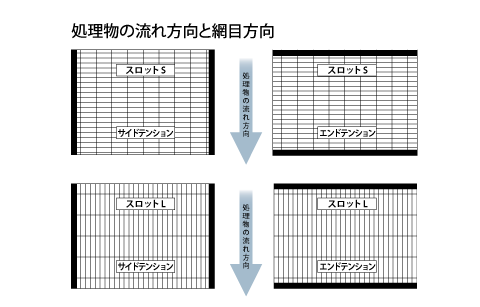

You can select the direction of mesh opening ,depending on flow direction of the products.
・Slot opening is short against flow direction…Slot S
・Slot opening is long against flow direction…Slot L
We can accommodate custom orders!
There are a wide variety of industrial wire mesh depending on customer's application and operating conditions. Our products are made to order in cooperation with each department to meet customer needs.
From hearings to support after delivery, we provide the optimal products that customers demand through an integrated system.
