Slot size 0.4mm

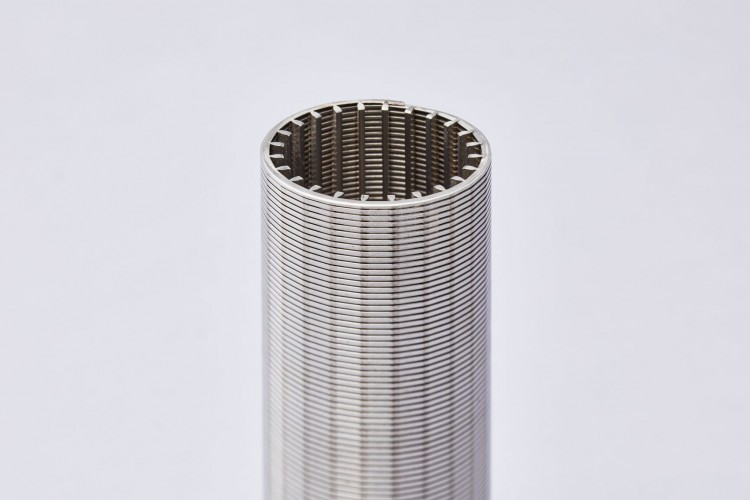

Pipe size screen

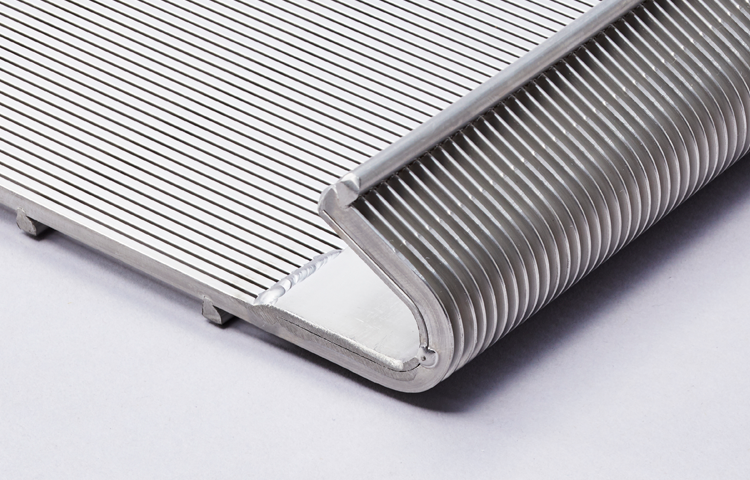

Slot size: 0.7mm With tension Hook
Slot size 0.4mm

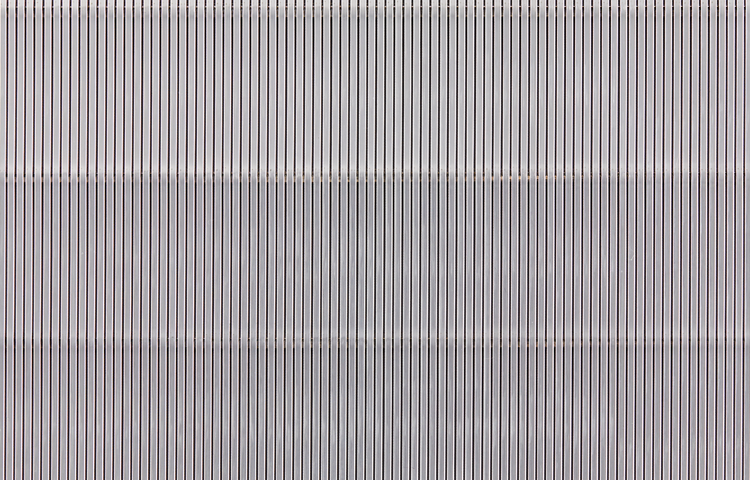

WEDGE WIRE SCREEN
- Filter
- Sieving Screen( metal wire mesh )
- Food
- Chemical
- Beverage
- Pharmaceutical
- Oil
- Civil Engineering
- Steel
- Non-Woven Fabric
- Environmental
- Metal Parts
- Water Treatment
- Mining
- Washing
- Dehydration
- Sieving
- Filtration
- Strainer
It is hard to get clogged even with a small slot. Useful for various applications.
If you want a catalog PDF, click here.Characteristics
・It is hard to get clogged and easy for backwashing.
・Wire and rod are welded together at all intersections and it has high mechanical strength.
・You can choose the slot size freely.
・The surface is smooth.
Products
-

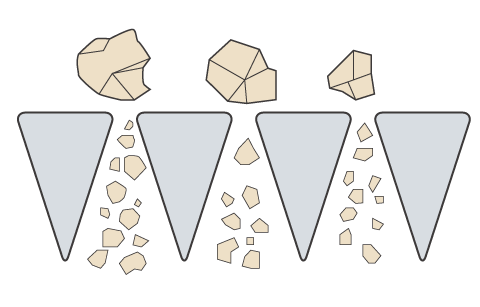

It is hard to get clogged for backwashing because particles contact on it by only 2 points. Easy to clean by backwashing.
-

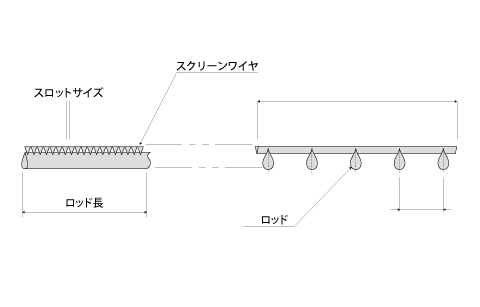

Wedge Wire Screen Structure
-

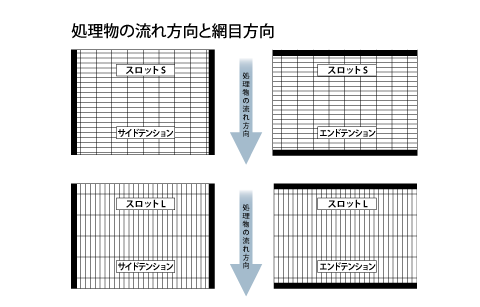

You can select the direction of mesh opening ,depending on flow direction of the products.
・Slot opening is short against flow direction…Slot S
・Slot opening is long against flow direction…Slot L
We can accommodate custom orders!
There are a wide variety of industrial wire mesh depending on customer's application and operating conditions. Our products are made to order in cooperation with each department to meet customer needs.
From hearings to support after delivery, we provide the optimal products that customers demand through an integrated system.
