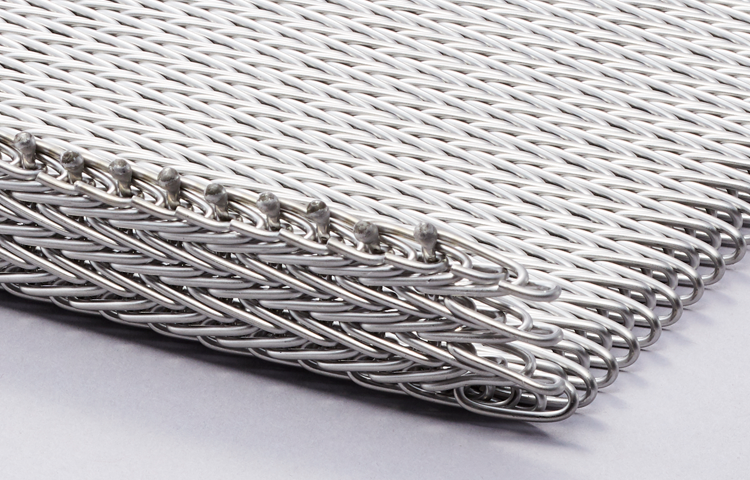

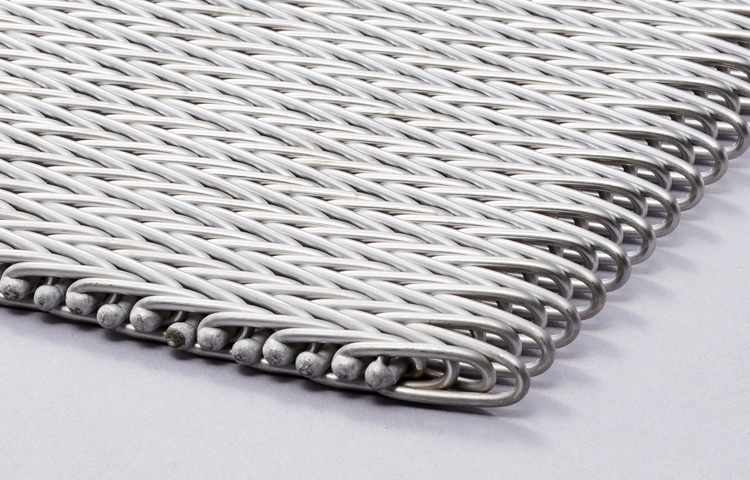

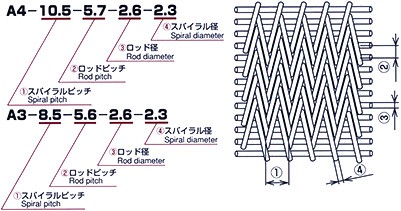

The structure consists of spirals of left wound and right wound assembled closley each other and connected by straight rod. A4 is a type in which one spiral is connected by four rods. A3 is a type in which one spiral is connected by three rods.
If you want a catalog PDF, click here.Characteristics
・conveying of small parts and unstable products is possible because the surface is smooth.
・allowable tension is large and heavy load conveying is possible.
・With large surface pressure of belt, it can be used for press process.
・It can be used for refining textile products and washing process.
・It can be used even at high temperature.
Products
-

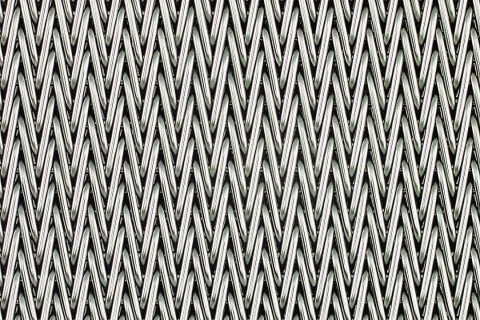

A4-10-5-2.3-2.0
-

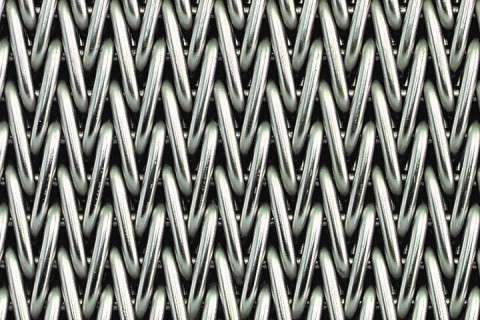

A4-6.2-3.7-1.8-1.4
-

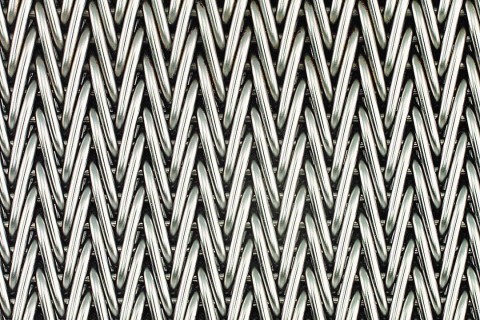

A4-3.7-2.1-1.2-0.8
-

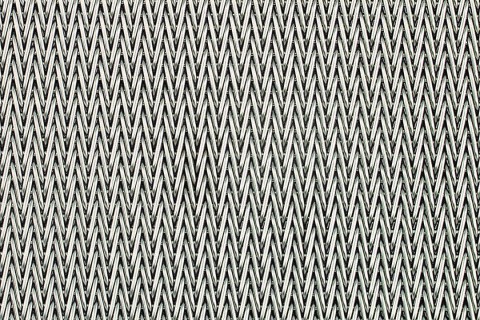

A3-5.8-4.2-2.0-1.6
We can accommodate custom orders!
There are a wide variety of industrial wire mesh depending on customer's application and operating conditions. Our products are made to order in cooperation with each department to meet customer needs.
From hearings to support after delivery, we provide the optimal products that customers demand through an integrated system.
