Known as "Eey link belt". Each link is made by processing wire into shape of glasses and they are connected by a rod. There are two ways to enlarge aperture: collar insertion and spot welding.
If you want a catalog PDF, click here.Characteristics
・Sprocket drive enables reliable and stable running.
・The surface is smooth, suitable to transport unstable products.
・washing is easy.
・Since the open area is large, it is highly breathable and dewaterable.
・conveying of high speed and heavy load is possible with reinforcement plate.
Products
-

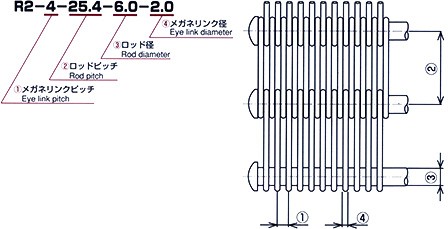

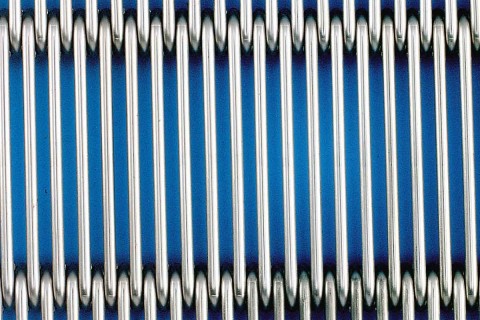

R2-10-38.1-6.0-2.0 (welded type)
-

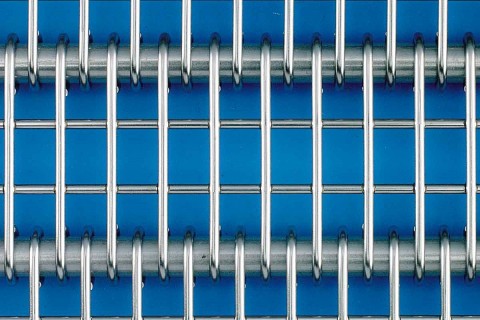

R2-5.2-50-6.0-2.6
-

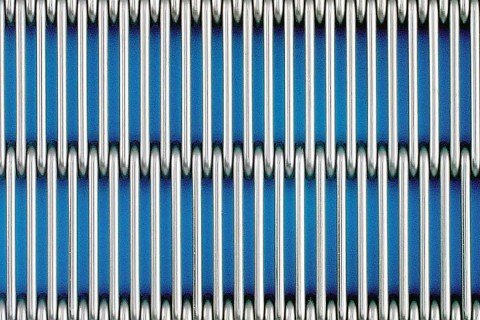

R2-4-31.75-7.0-2.0
-

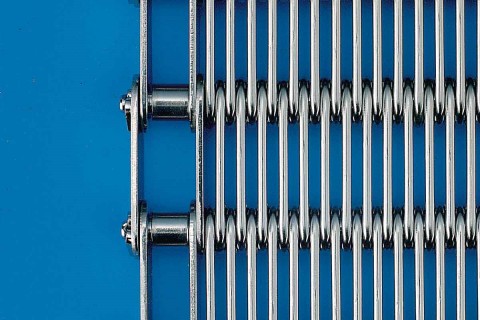

R2-2.4-2.45.4-5.0-1.2 (with chain)
We can accommodate custom orders!
There are a wide variety of industrial wire mesh depending on customer's application and operating conditions. Our products are made to order in cooperation with each department to meet customer needs.
From hearings to support after delivery, we provide the optimal products that customers demand through an integrated system.
