SUPER CLEAN PLATE

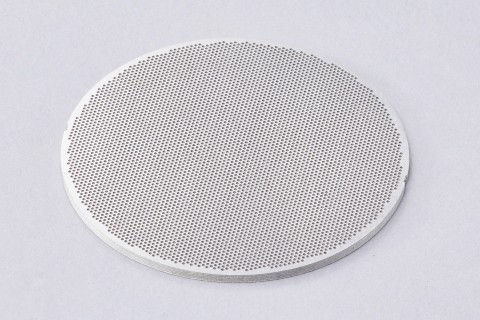

SCP is the world's first stainless steel sintered plate of multilayered etching plates,which is superior in cleanability, with uniform pores.

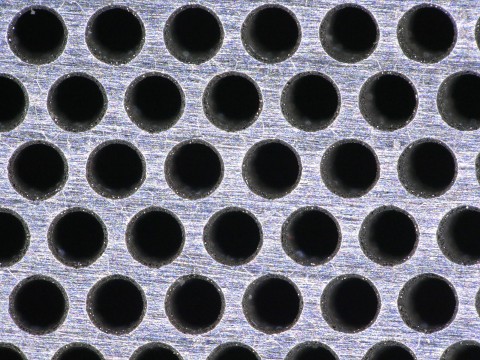

A structure of SCP is simple and superior to sanitary and cleanability; it does not require any reinforcement because of very simple and straight pores.

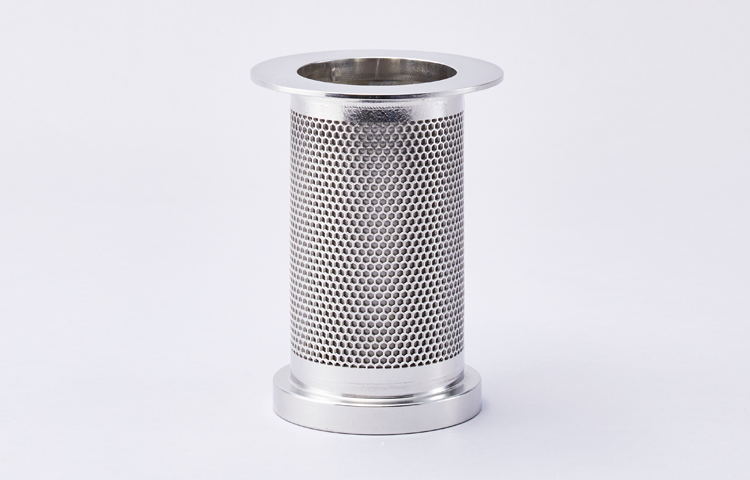

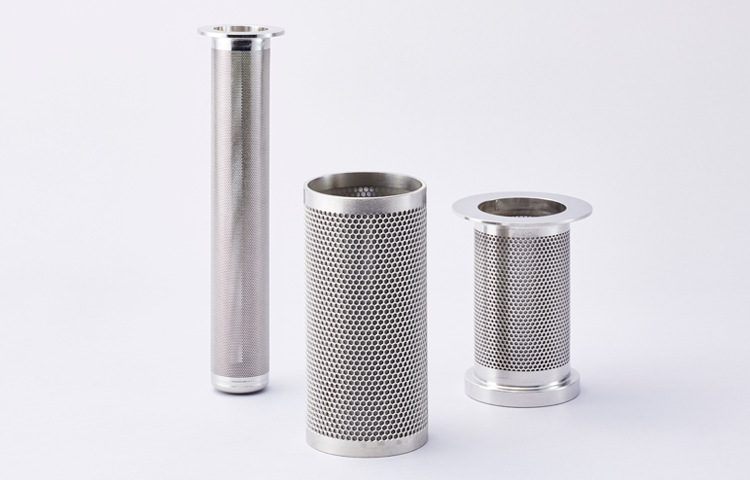

φ0.1mm(opening ratio 40%) is available as a minumu in filter rating. It is possible to use for a variety of cartridge filters and strainers.

Characteristics

・High strength
Laminated stainless steel plates are sintered and it has quite high mechanical strength and pressure resistance.
・Washing
Simple structure of straight pore It is easy to wash because no foreign particle enters into the layers.
・Sanitary
It is sanitary because it made of stainless steel plate.

Products

Standard material
ＳＵＳ３１６Ｌ
Standard filter media composition

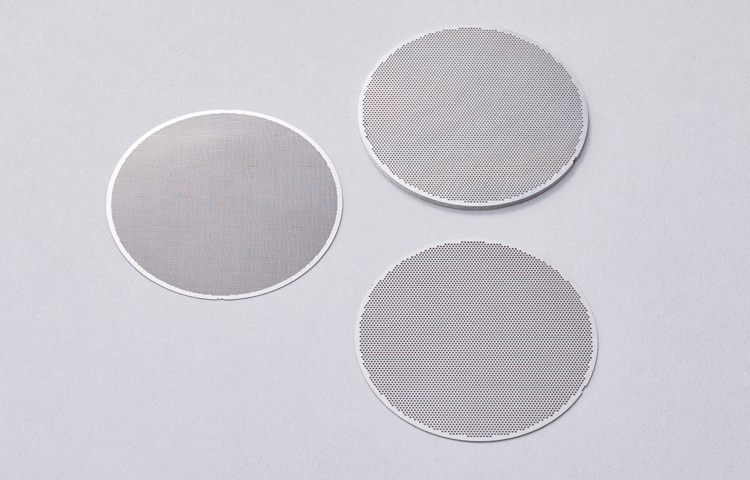

Multiple layers of Super Clean Plate

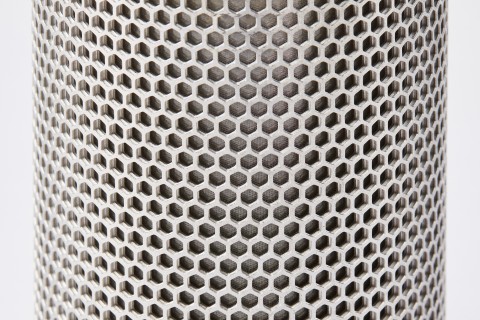

Super Clean Plate + perforated screen plate
Super Clean Plate + wire mesh　　　
Filter Rating
Equivalent to SCP010 φ0.10mm 150mesh
Equivalent to SCP015 φ0.15mm 100mesh
Equivalent to SCP020 φ0.20mm 80mesh
Equivalent to SCP027 φ0.27mm 60mesh
Equivalent to SCP040 φ040mm 40mesh
Equivalent to SCP087 φ0.87mm 20mesh
※open area 20-40%
Processing

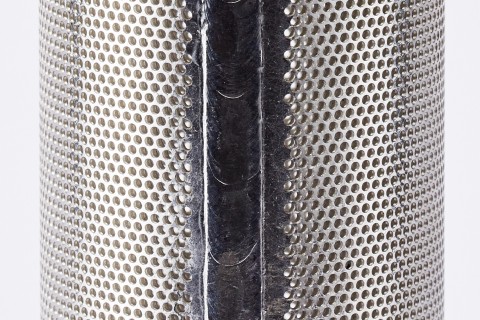

Welding, cylindrical processing, electrolytic polishing, and so on can be applied.
Custom made
In addition to the standard configuration, a special configuration can also be acceptable.

We can accommodate custom orders!

There are a wide variety of industrial wire mesh depending on customer's application and operating conditions. Our products are made to order in cooperation with each department to meet customer needs.
From hearings to support after delivery, we provide the optimal products that customers demand through an integrated system.

About custom-made Click here for more information.
