Spirals of left wound and right wound are alternatively assembled and connected by crimped rod. It is driven by special sprocket.
The dedicated sprocket is designed by specification of belts.
Characteristics
・As driven by sprocket, no slip meandering.
・Since rotating diameter can be reduced, transfer of transport material is smooth.
・Our proprietary Hardy-2 ※This belt uses less stretchy and hard to deform.
・Light weight because the number of parts is smaller than a belt with a chain.
・Washing is easy because there is little dead space.
・The standard specification of the belt is fixed, making it easy to select.
・It is a system with low total cost.
※ Hardy-2 has a hard line of SUS304 with a hardness of 30% or more.
Products
-

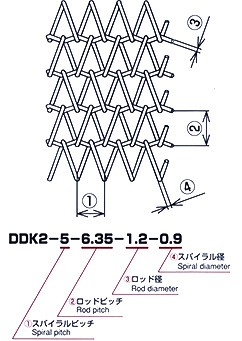

DDK2-5.0-6.35-1.2-1.2
-
DDK2-7.2-8.5-1.2-1.2
-
DDK2-10.1-12.7-1.4-1.4
-
DDK2-16.9-19.05-1.6-1.6
-

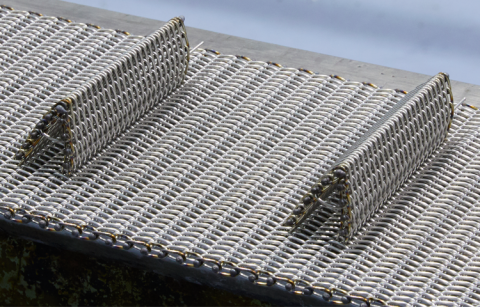

Net stopper
We can accommodate custom orders!
There are a wide variety of industrial wire mesh depending on customer's application and operating conditions. Our products are made to order in cooperation with each department to meet customer needs.
From hearings to support after delivery, we provide the optimal products that customers demand through an integrated system.
