Spirals of left wound and right wound are alternatively assembled and connected by straight rod. A2 with rod pitch less than twice spiral pitch. F2 with rod pitch more than twice.
If you want a catalog PDF, click here.Characteristics
・conveying of unstable product is possible because surface is smooth.
・allowable tension is large and heavy load conveying is possible.
・It can be used for high temperature.
・aperture can be made small, so small conveying is possible.
Products
-

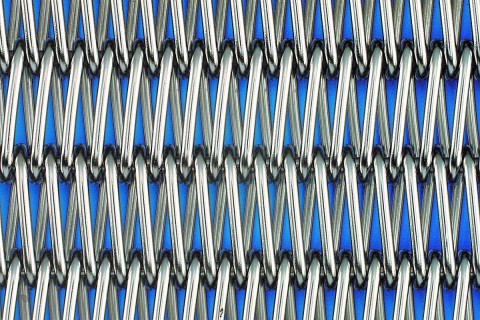

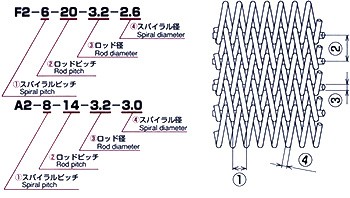

F2-6-20-3.2-2.6
-

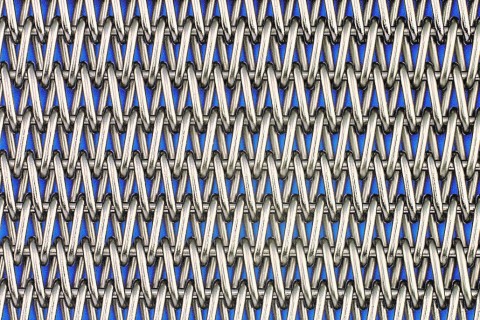

A2-4.8-8-2.3-1.8
-

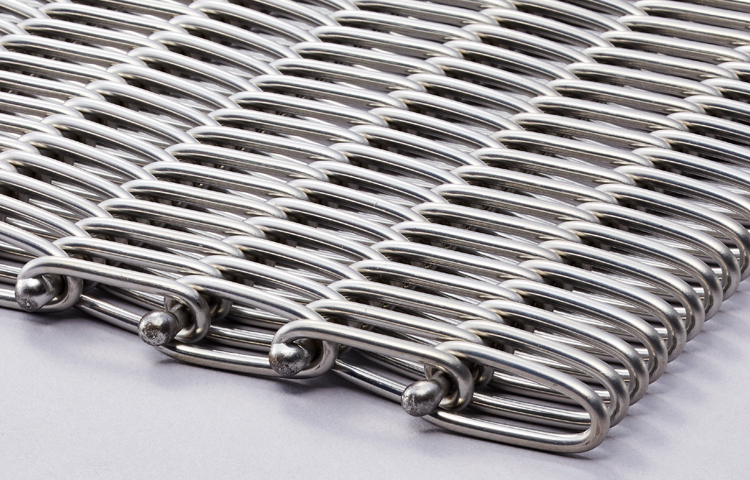

belt edge treatment welded type
（A2-8-14-3.2-3.0-W） -

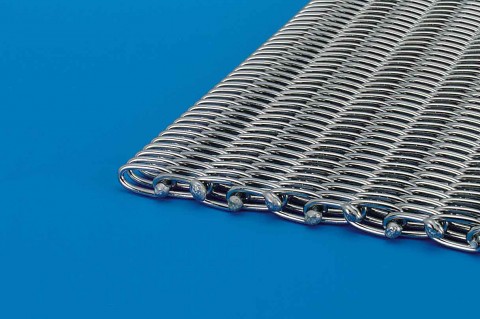

belt edge treatment clinched type
（A2-8-14-3.2-3.0-C） -

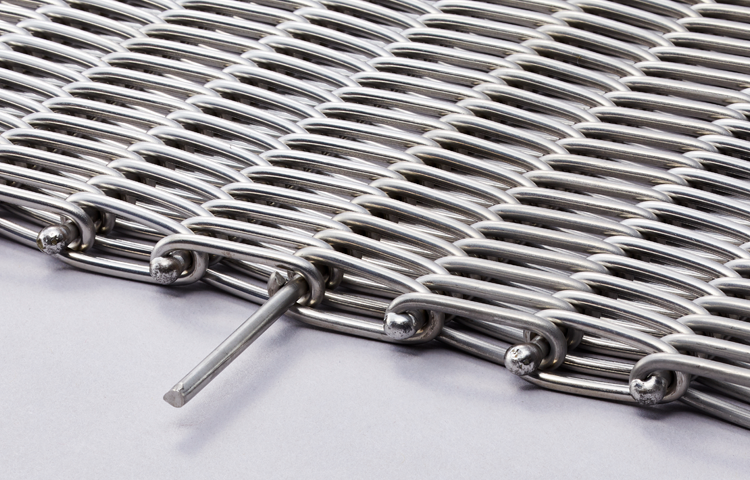

belt edge treatment rod franji type
（F2-7-16-4.0-2.6-RF）
We can accommodate custom orders!
There are a wide variety of industrial wire mesh depending on customer's application and operating conditions. Our products are made to order in cooperation with each department to meet customer needs.
From hearings to support after delivery, we provide the optimal products that customers demand through an integrated system.
