High-precision wire mesh for building materials with no gaps! Small lot support is possible!

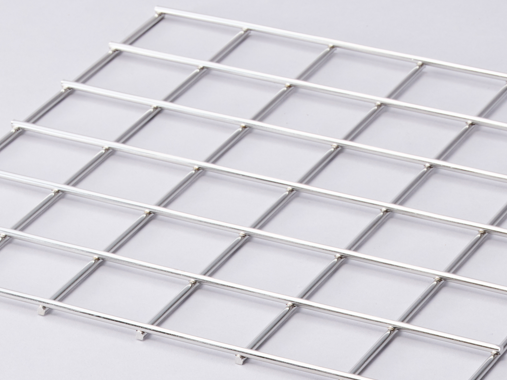

Welded wire mesh
What kind of product?
The vertical and horizontal lines of stainless steel and iron wires are arranged at right angles, and the intersection is joined by electrical resistance welding.
There are various applications such as concrete reinforcements, civil engineering-related foundations, safety fences, fences, etc.
What's features?
・Since welding the intersection of the mesh, it does not cause eye loss.
・In addition to sheet type, we also accept processing in various shapes such as round and basket shape.
・It is possible to handle small lots from one sheet.
Main handling specifications
Iron
・Line diameter φ2.6 to φ9.0
・Mesh 50mm to 300mm
・1m x 2m, 2m x 4m (depending on the mesh)
Made by SUS304
・Line diameter φ2.6 to φ6.0
・Mesh 50mm to 150mm
・Ziz 1m x 2m

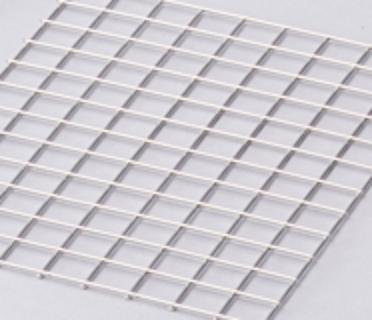

Fine mesh (made by SUS304)
・Line diameter φ0.7 to φ2.0
・Mesh 6.35mm to 30mm
・Size 1m x 20m to 30m
