It can be combined with various types of belts!
Conveyor Belt with Chain
What kind of product?

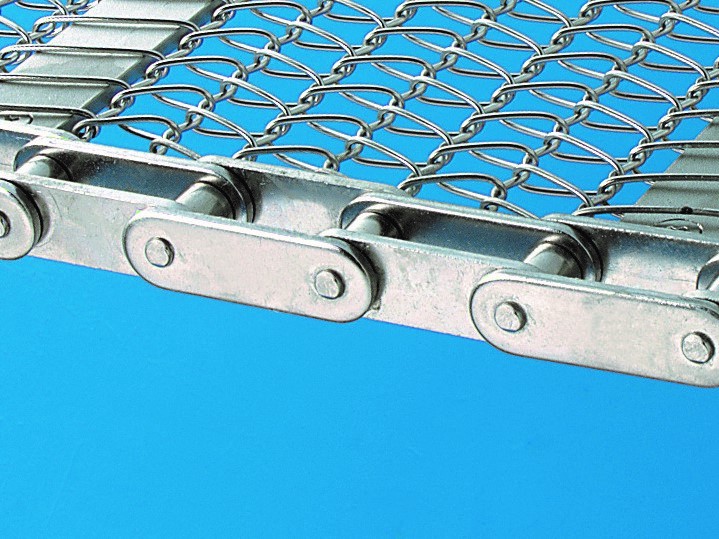

This type has a chain attached to both sides of the wire conveyor belt.
Belt and chain are matched by stay pin.
The combination of belts, chains, and stee is free, and we select and propose optimal combinations that match the usage conditions.
What's features?
・There is no meander because the chain is driven by a sprocket.
・By adjusting the pitch of the belt, it can be assembled into various types of chains.
・The chain and stay make it easy to install francs and stoppers.
・It is possible to select a stable according to the usage conditions.

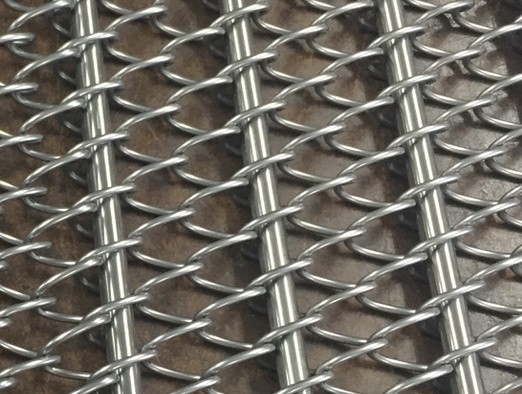

・There are steepins, pipes, flat bars, angles, channel types, etc.
Does your conveyor belt with chain meet the conditions of use?

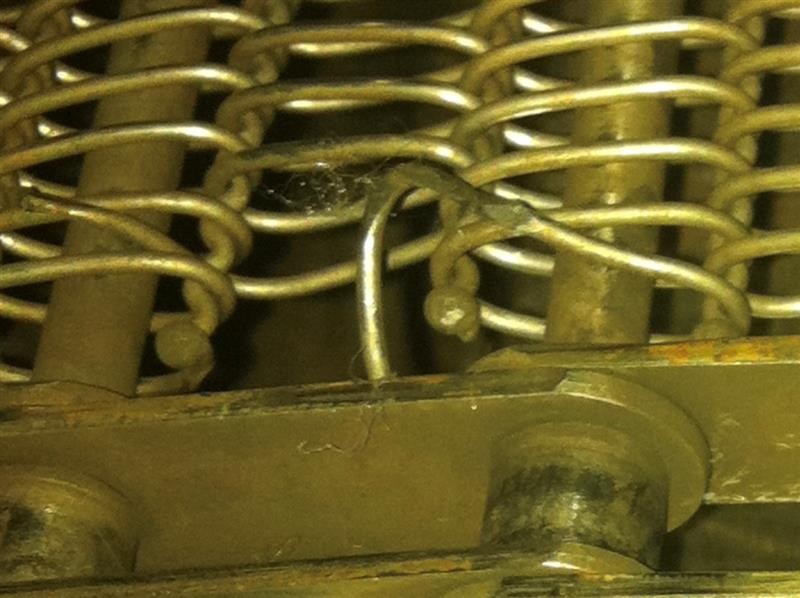

Common problems①
[Trouble]
Transformation of belts
[Estimated Cause]
・Interference with the main body
・Large (or small) chain sagging
・Poor meshing of sprocket
・Loose mounting bolt
Common problems②
[Trouble]
Abnormal chain bending
[Estimated Cause]
・Overload, deformation of pin Bush
・Corrosion, rust
・Hardening of wear powders, garbage, etc.
・Foreign matters and transports are clogged
・Use at high and low temperatures exceeding tolerance
Common problems③
[Trouble]
Breaking loss of stems
[Estimated Cause]
・The deflection of the stem is large
・The middle drum diameter is large
・The phase of the sprocket is shifted
・One-sided growth of the chain
