Accurate filter rating and low pressure loss achieved at the same time.
Bekipor filter (BEKIPOR®)
What kind of product?

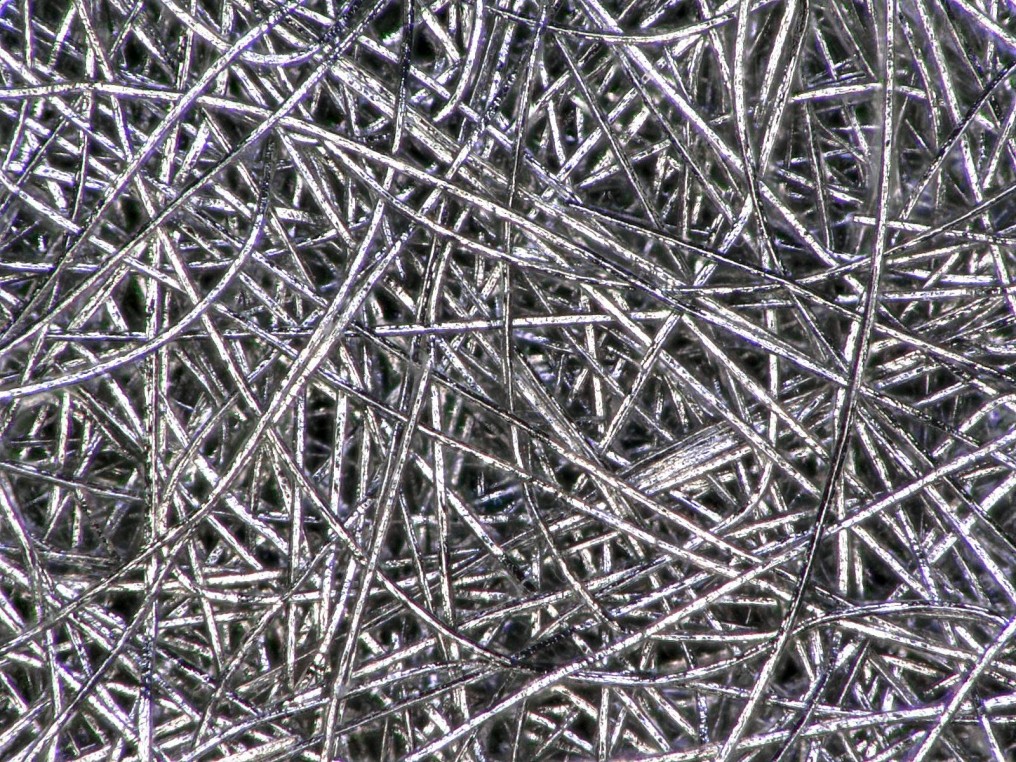

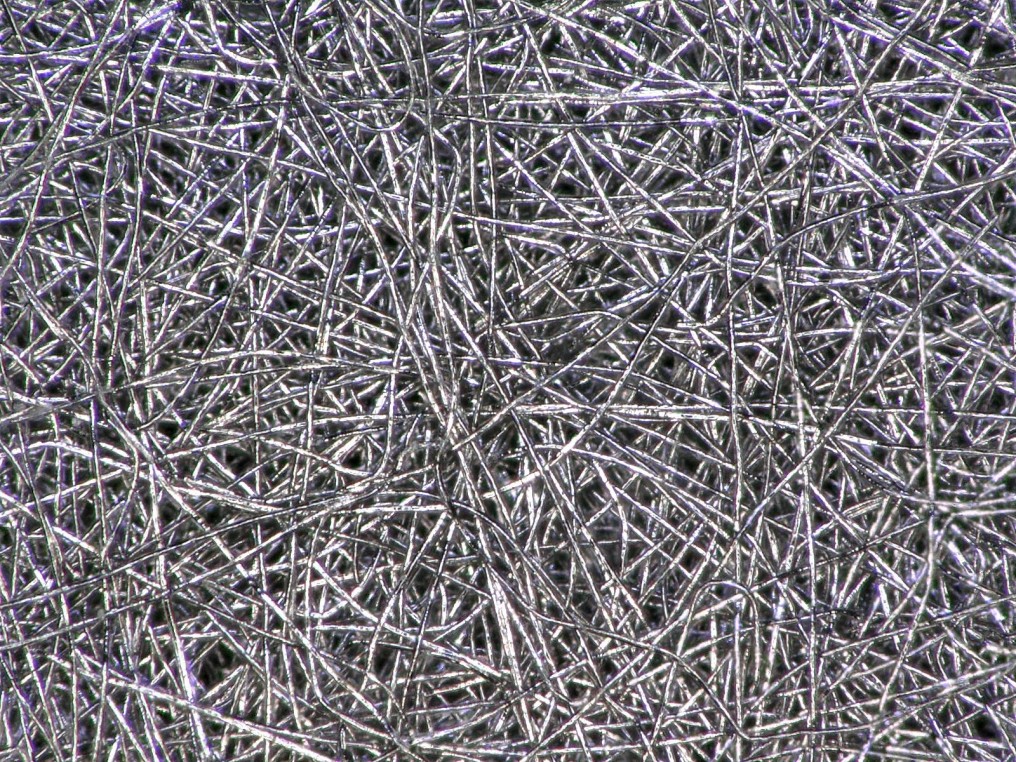

BEKIPOR® is a non-woven sintered medium of ultra-fine fibers.
While wire mesh is used as surface filtlation, it's used as depth filter because it has internal filtlation structure.
What's features?
・Since the porosity is high, it gets low pressure drop, high collection efficiency and long filtration lifetime, compared with the other filter medium.
・Since it has complex three-dimensional structure of fine fibers, it can be used not only for foreign particles collection but also for gel separation.
・It can be used under high temperature and high pressure.
・It's excellent in corrosion resistance.
・It can be reused repeatedly after backwashing, ultrasonic cleaning, chemical cleaning, or pyrolysis.
This is a filter media which enables energy-saving and high-speed filtlation.
BEKIPOR® is a trademark of N.V.BEKAERT S.A.
Type of Sintered mesh
ST － AL3
AL3 is the most standard type and ranging from 3μm to 75μm of filter rating.
Because of the internal filtering material, it is possible to divide the gel during filtering polymers.
ST － CL3
Because of the high porosity, it has high dirt holding capacity.
It shows high performance under relatively low pressure condition, such as monomer filtlation before polymerazation.
ST － CL4
It does not get deformed easily even under high fluid pressure, because of the compressive resistance. Therefore, it ensures filtration lifetime of filters used under high pressure difference such as spin pack filter and central polymer filter.
ST － DL4
It is same as CL4 in terms of compressive resistance but it is superior to CL4 in terms of mechanical strength and collection efficiency. It is suitable for spinpack filters especially for leaf disc filters.
Furthermore, it's superior to the others in terms of reuseability because of its excellent durability.
Want to know more about it?
Regarding the support mesh

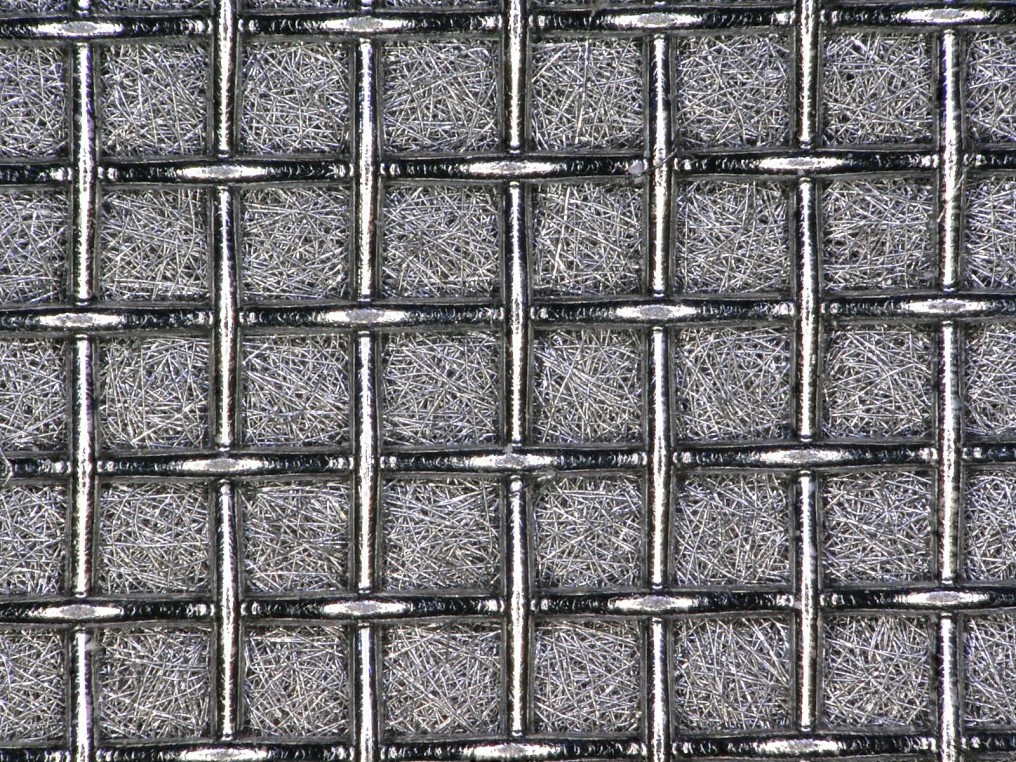

Reinforcement mesh (S-mesh: φ0.125 × 48mesh) can also be integrated by sintering.
※S-mesh: φ0.125 × 48mesh (S type: single-sided reinforcement SS type: double-sided reinforcement)
About Material
Standard AISI316L
Other Inconel 601, Alloy HR, and Fekraloy can also be produced.
About processing

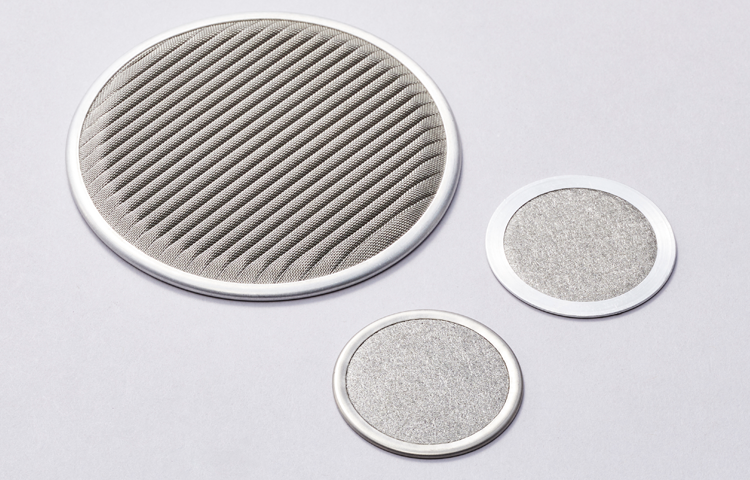

It can be processed into various shapes such as discs, candles, and pleats (excluding DL4 type).
