This is the best filter for cleaning!

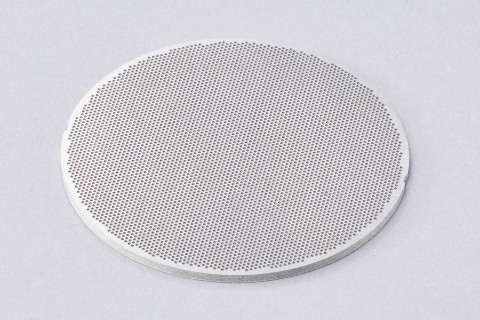

Super Clean Plate (SCP)
What kind of product?

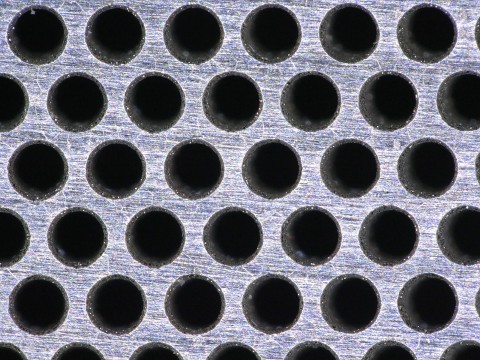

SUS plate of uniform pores that are laminated and sintered by matching the hole position of the etching plate.
In addition to improving strength by laminated sintering, it excels in cleaning properties.
What's features?
・It has extremely high mechanical strength and pressure resistance strength.
・It is easy to clean because there is no foreign matter inside the layer.
・It is sanitary because it made of stainless steel plate.
Want to know more about specifications!
Standard material, filter material composition
ＳＵＳ３１６Ｌ
Multiple layers of Super Clean Plate

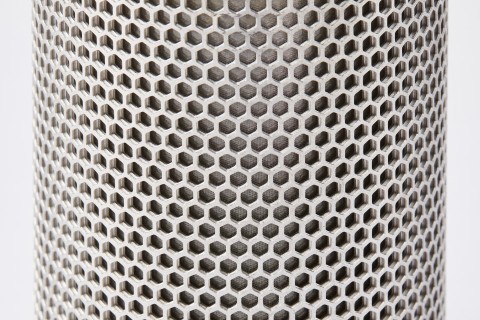

Super Clean Plate + perforated screen plate
Super Clean Plate + wire mesh
Filter Rating
Equivalent to SCP010 φ0.10mm 150mesh
Equivalent to SCP015 φ0.15mm 100mesh
Equivalent to SCP020 φ0.20mm 80mesh
Equivalent to SCP027 φ0.27mm 60mesh
Equivalent to SCP040 φ040mm 40mesh
Equivalent to SCP087 φ0.87mm 20mesh
※open area 20-40%
Processing

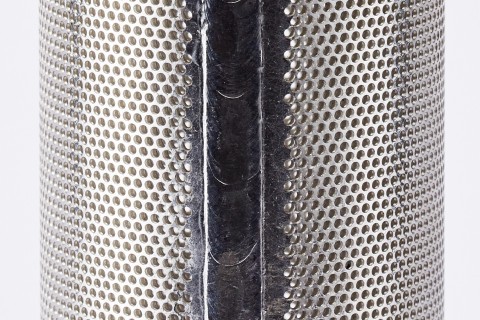

Welding, cylindrical processing, electrolytic polishing, and so on can be applied.
Custom made
In addition to the standard configuration, a special configuration can also be acceptable.
