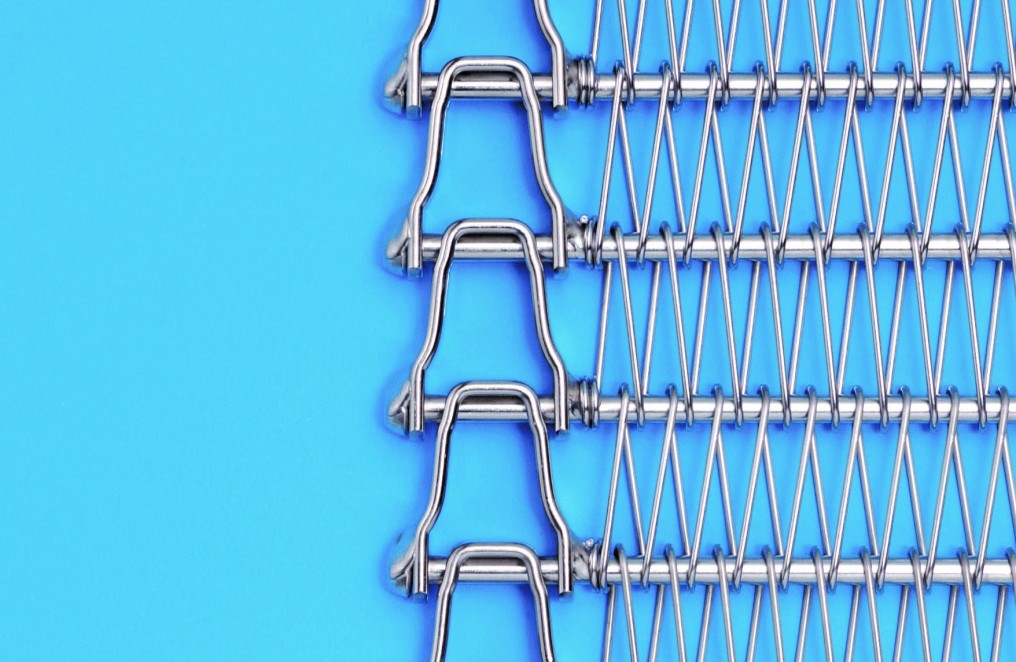

Spiral conveyor belt LF2
What kind of product?
Conveyor belt for spiral tower with uniform and smooth edge. It is processed to prevent oxidization and sensitaization, and the entire belt is degreased to prevent dirt and damage.
What's features?
・Useable in small space. Turn raius is 2.0 times the width of the belt.
・High wear resistance rod and link are chosen. Elongation of belt greatly reduced.
Want to know more about specifications!
Standard specifications
Spiral pitch 5~15mm
Spiral diameter φ1.2 、 φ1.4 、 φ1.6 Hardy 1
Rod pitch 19.05 、 27.4mm
Rod Diameter φ5
Belt width 300~1,200mm
LF2 HT

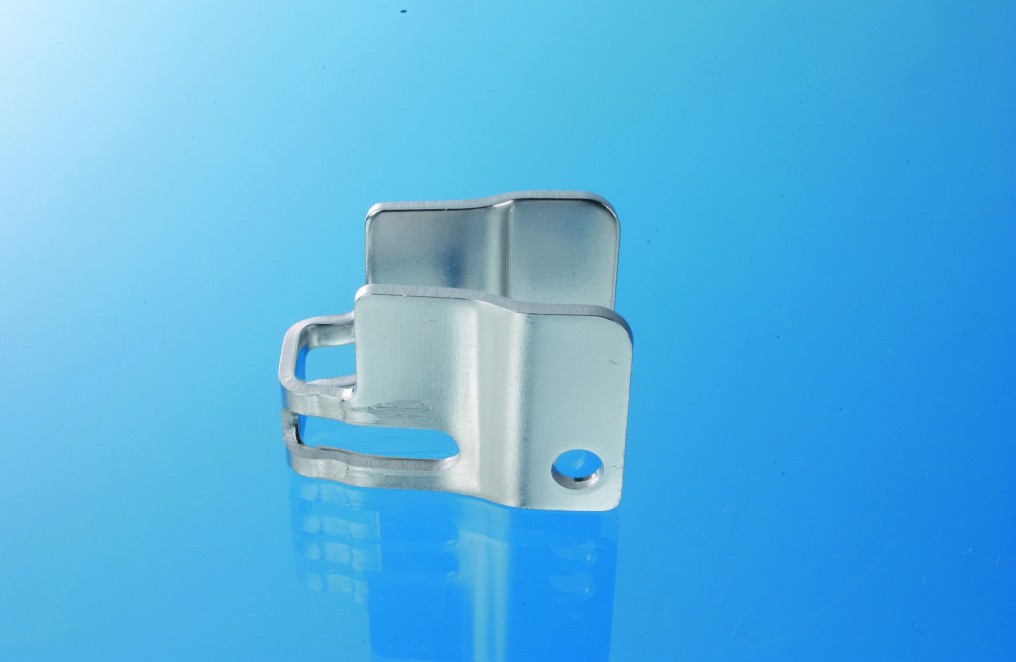

Improved strength with 2.6 mm thick material for link.
Rod pitch 27.4mm
Rod Diameter φ5
Belt width 300~1,200mm
LF2 with side gurad
Rod pitch 27.4mm with H40 flange and H20 flange
Rod pitch 19.05mm with H20 flange
Rod Diameter φ5
Belt width 300~1,200mm
