Excellent pressure resistance and filtration structure!
Sintered Woven Wire Mesh
What kind of product?
Various wire meshes are laminated and sintered together using our unique sintering technology.
The ideal filtration structure is achieved through multilayer sintering.
Sintered wire mesh is the most suitable for filteration where uniform filter rating is required.
What's features?
・The wire mesh of each layer devides each aperture, creating fine and uniform ideal filtration structure.
・It can keep the same opening even under high pressure because wires are bonded well together at the contact points after sintering.
・It is excellent in backwashing and can be reused repeatedly.
・It's excellent in corrosion resistance.
I want to know what kind of type you have!

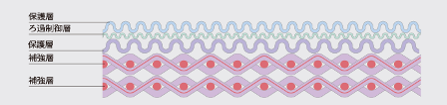

POREMET
・The 5-layer structure has high mechanical strength and pressure resistance strength.
・The standard material is SUS316L, but it can also be made with inconel, hasteroid, nickel, etc.
・Standard thickness: t1.7

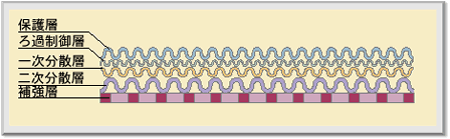

Bonmesh
・Punching is used as a reinforcement material and sintered together with wire mesh.
・The standard material is wire mesh SUS316, and the punching is SUS304. It can be made with special materials like Poamette.
・It is also possible to use polymets for the filter material part.
