Developed Plain dutch weave mesh
Betamesh-PLUS
What kind of product?
Compared with normal Plain dutch weave mesh, a woven structure that enables more surface filtration can be achieved by making the wrap wire thicker and the weft wire thinner,
What's features?
・Compared with normal Plain dutch weave mesh, filter cakes can be removed easily and backwashing is also easily.
・Compare to normal Plain dutch weave mesh, finer filter rating is possible.
・High strength (high pressure resistance) and low pressure loss
What is actual effect!
Differences in particle capture form of Plain dutch weave mesh and Betamesh-PLUS
As shown in the figure on the right, the Plain Dutch weave mesh captures particles with pockets formed by the warp and weft lines, whereas the Betamesh-PLUS captures particles between the weft lines on the mesh surface. Since particles are captured on the surface of the wire mesh with two-point contact, the cake detachment is improved and reverse cleaning is easier compared to conventional Dutch weave mesh.

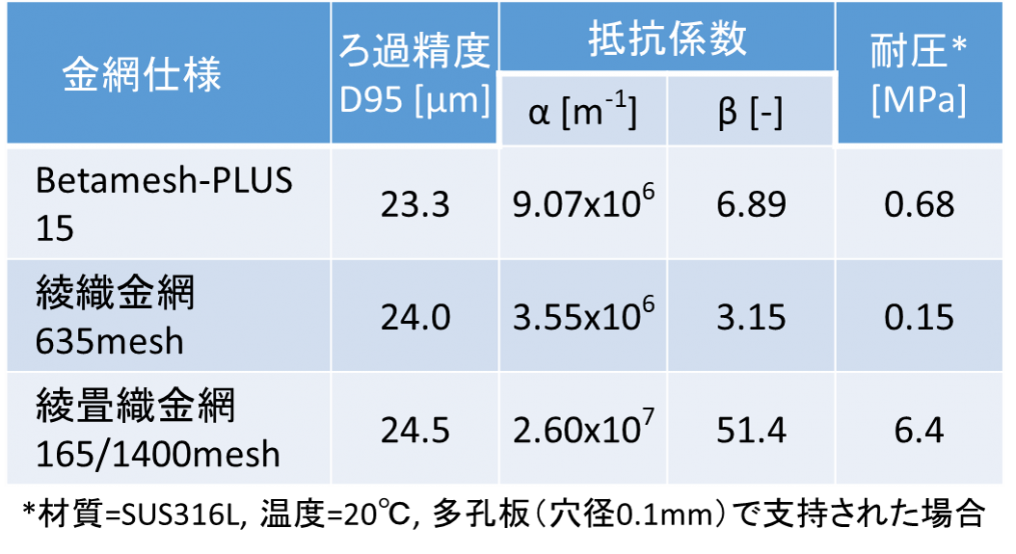

Comparison of performance with other wire mesh
The table shows a comparison of the performance of Betamesh-PLUS, Twilled weave mesh and Twilled dutch weave mesh with similar filtration accuracy.
Pressure Resitance Twilled weave < Betamesh-PLUS < Twilled dutch weave
Pressure loss: Twilled Dutch ＞ Betamesh-PLUS ＞ Twilled weave
It is a very well-balanced material in terms of strength and pressure loss.
