Excellent pressure resistance and filtration structure!
Sintered Woven Wire Mesh
What kind of product?
Various wire meshes are laminated and sintered together using our unique sintering technology.
The ideal filtration structure is achieved through multilayer sintering.
Sintered wire mesh is the most suitable for filteration where uniform filter rating is required.
What's features?
・Each layer of wire mesh devides each aperture, creating fine and uniform ideal filtration structure.
・It can keep the same opening even under high pressure because wires are bonded well together at the contact points after sintering.
・It is excellent in backwashing and can be reused repeatedly.
・It's excellent in corrosion resistance.
Type of Sintered mesh
POREMET

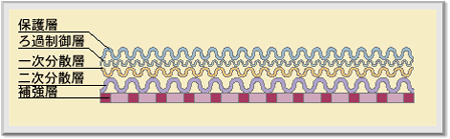

・The 5-layer structure has high mechanical strength and pressure resistance strength.
・The standard material is SUS316L, but it can also be made with inconel, Hastelloy nickel, etc.
・Standard thickness: t1.7
Bonmesh

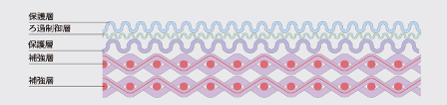

・Perforated screen is used as a reinforcement material and sintered together with wire mesh.
・The standard material is wire mesh SUS316, and the punching is SUS304. It can be made with special materials like Poremet.
・It is also possible to use Pormet for the filter material part.
