It is a wire conveyor belt that is also used for dust removers!

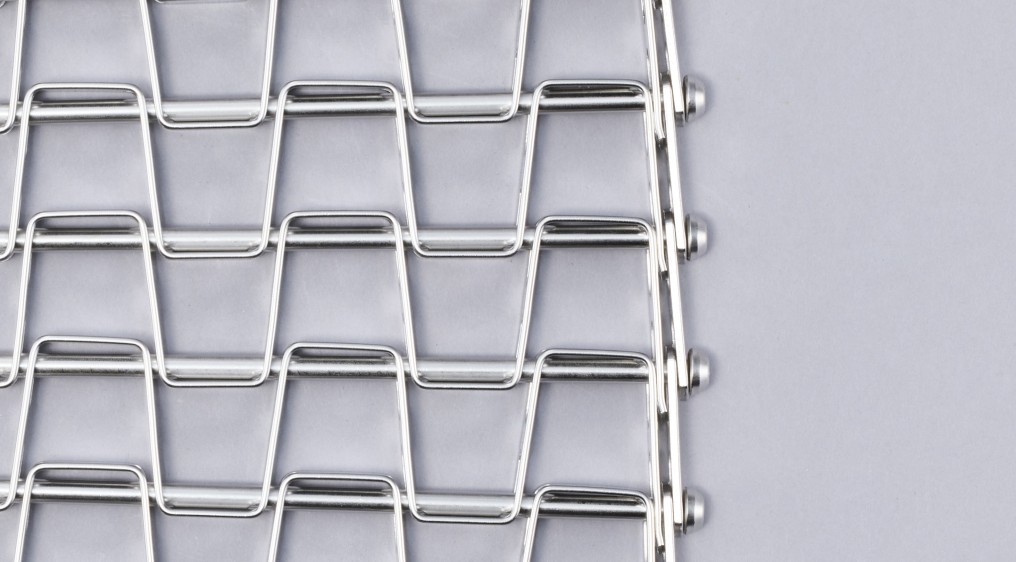

Flat wire belt (FW)
・This belt is made by continuously processing flat wires (FWs) into grids and connecting them with straight rods.
・It is also used for removing garbage (draftwood, fallen leaves, small fish, ice mass, etc.) at drainage stations, etc., but because of its steep slope, stoppers (also called flights and rake) are installed. Has been done.
・Sprocket drive enables reliable and stable running.
・Since the open area is large, it is highly breathable and dewaterable.
・The belt surface can be transported even if it is smooth and easy to fall down.
・washing is easy.
・CFW can be used for curve.
We are also preparing attachments!

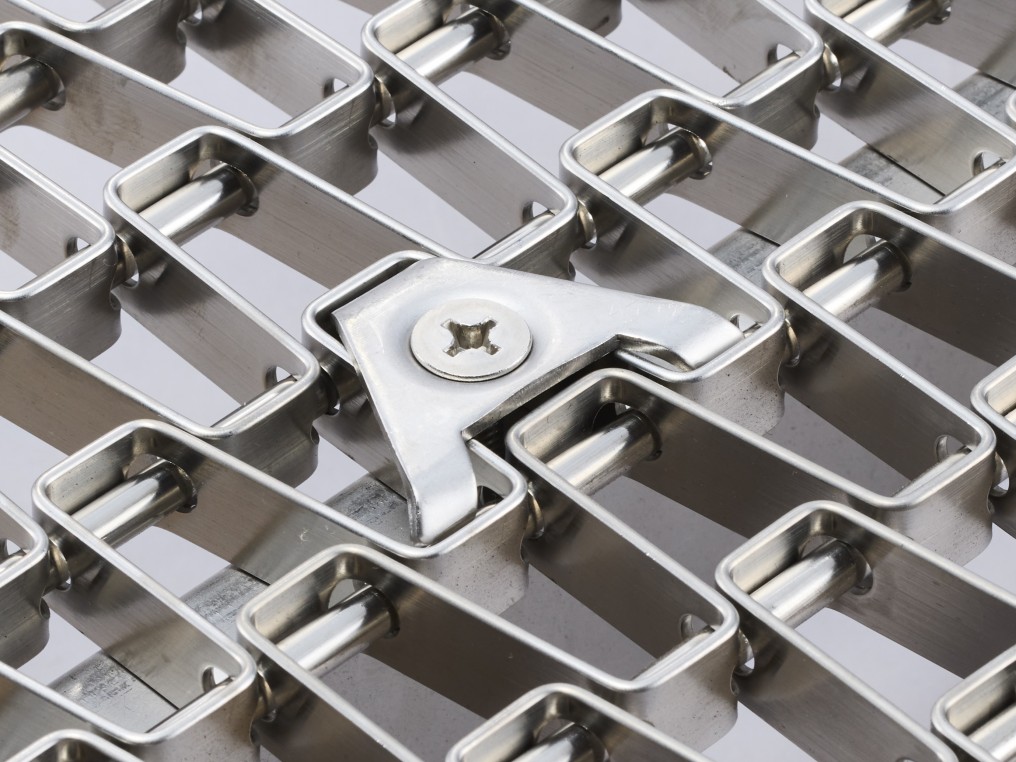

A stopper can be attached!
・It is possible to easily attach the stopper using a bracket for mounting the stopper.
・Attach the bracket for mounting stopper to the back of the belt.
・We are preparing brackets for mounting stoppers with the following two specifications.
①FW-18-27.4-5.0-(1.5×12.7)-H
②FW-12.7-25.4-5.0-(1.5×12.7)-H
Reinforcement plate can be attached!
・Reinforcement plates can be attached in the shape of C or in an arrangement of staggers.
・A reinforcement plate is embedded on both sides or on one side of the belt.
・Reinforcing plates from t1.5 to t3.0 are available.
